EVH 5150III 50W EL34 Head

Independent volume and gain control for all three channels has arrived with the 5150III 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head.

The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH 5150III amps.

Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control.

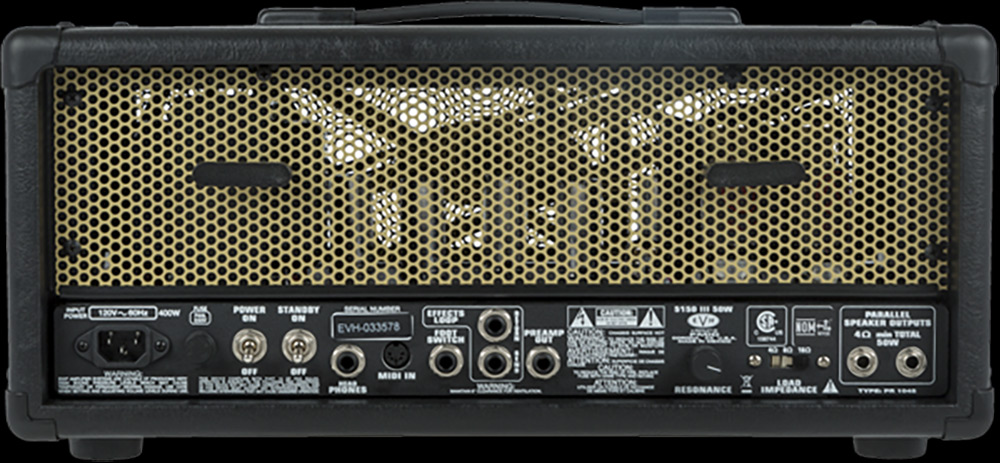

Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out, and midi-in.

Channels: Three - (Clean, Crunch and Lead)
Connection Type: 1/4"
Connectivity: MIDI
Control Panel: Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
ControlsChannel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
Effects Loop: 1/4" (Send/Return)
Headphone Jack: 1/4" Stereo
Inputs: One - 1/4", MIDI (rear)
Line Out: One - 1/4"
Voltage: 120V (Also Available in 100V, 110V, 220V, 230V, 240V)
Wattage: 50 Watts
Amplifier Covering: Black Textured Vinyl
Cabinet Material: White Birch
Control Knobs: Black Chicken-Head Style Pointer
Front Panel: Gold Anodized
Grille Cloth: Perforated Steel Front and Rear Panel
Handle: Molded Plastic Strap with Black Powder Coated Caps
Speaker Jack: Two - 1/4" Parallel
Power Tubes: 2 x JJ EL34
Preamp Tubes: 7 x JJ ECC83S (12AX7)
Rectifier: Solid State
Dimensions: 15.00x17.00x28.00 IN
Power Tubes: 2 x JJ EL34
Product Depth: 12" (30.5 cm)
Product Height: 8.5" (21.6 cm)
Product Width: 20" (50.8 cm)
